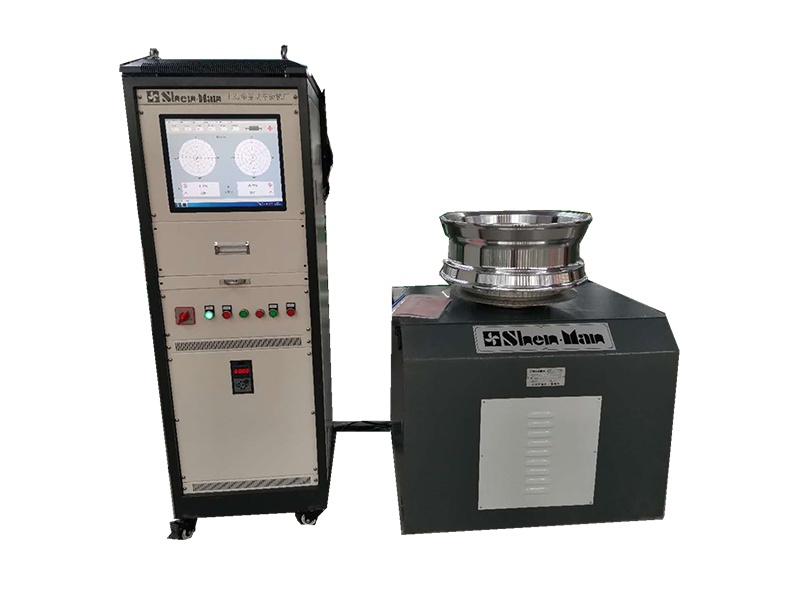

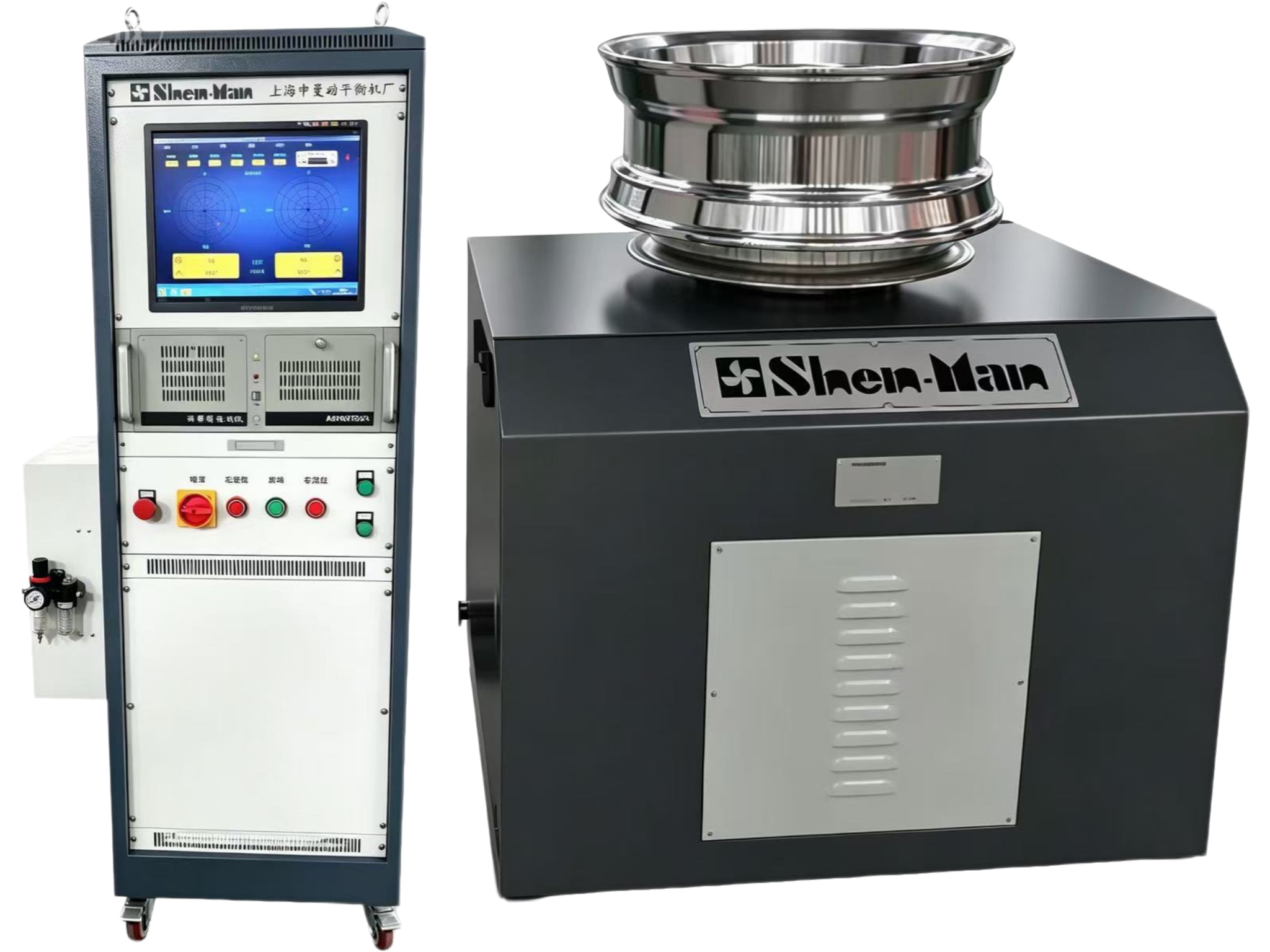

double-sided vertical computer pneumatic fixture hub balancing machine
Vertical balancing machineindustry "balancing machine with vertical installation of drive spindle bearing" refers to a testing instrument equipped with data detection devices such as sensors, which can detect and store the unbalance of measured workpieces, and has accurate measurement and various positioning functions. Vertical dynamic balancing machine belongs to the category of static balancing. Vertical balancing machine has three main technologies: supporting structure, engine splitting technology and centrifugal force feedback.
vertical balancing machine is characterized by the vertical installation of the drive spindle bearing. Compared with horizontal or other supporting measuring instruments, it has the advantages of high measurement accuracy, high work efficiency, simple operation, friendly human-computer interaction, and good safety. Compared with other equipment commonly used in rotor dynamic balance measurement, the measurement accuracy of vertical balancing machine, support frame and other fixing devices, using professional design, measuring rotor loading and unloading convenient. Therefore, in the rotor automation production system, the most can fully reflect its intelligence, to achieve efficient, economic, flexible intelligent production.
Double-sided vertical computer pneumatic fixture hub balancing machine is widely used in: fan blades, impeller, clutch pressure plate, woodworking tools, car disc and other disc rotating workpiece dynamic balance correction. Generally through the computer to control its measurement accuracy and input measurement of workpiece parameters.
|
Machinery Name: Wheel hub double-sided vertical pneumatic fixture balancing machine |
|
|
workpiece |
10-80KG |
|
workpiece |
800mm |
|
Maximum Balanced Hub Width |
450mm |
| chuck device |
Large angle chuck for quick determination of angular position |
|
Balance speed |
120-600r/min |
|
Motor power, inverter power |
3KW/3KW |
|
Minimum achievable residual unbalance |
2g.mm/kg |
|
Unbalance Reduction Rate |
≥ 95% |
|
Measurement plane |
Double-sided |
|
Frequency Converter Configuration |
Quick start frequency converter |
|
storage space |
large capacity 8G |
|
beat |
90s |
measurement mode: several measuring points on the rim can be switched at will (double-sided detection, A + B, B + C and other modes can be switched freely).
measurable products: both steel wheels and aluminum alloy wheels are available.
Measurable wheel hub types: other kaba wheels and car wheels can be realized through quick replacement of tooling and fixtures.
display mode: in increments of every g, not in increments of 2g, 5g, etc.
positioning protection: the product is finished product after finishing, and the positioning fixture needs to be protected to avoid bumping the product.
