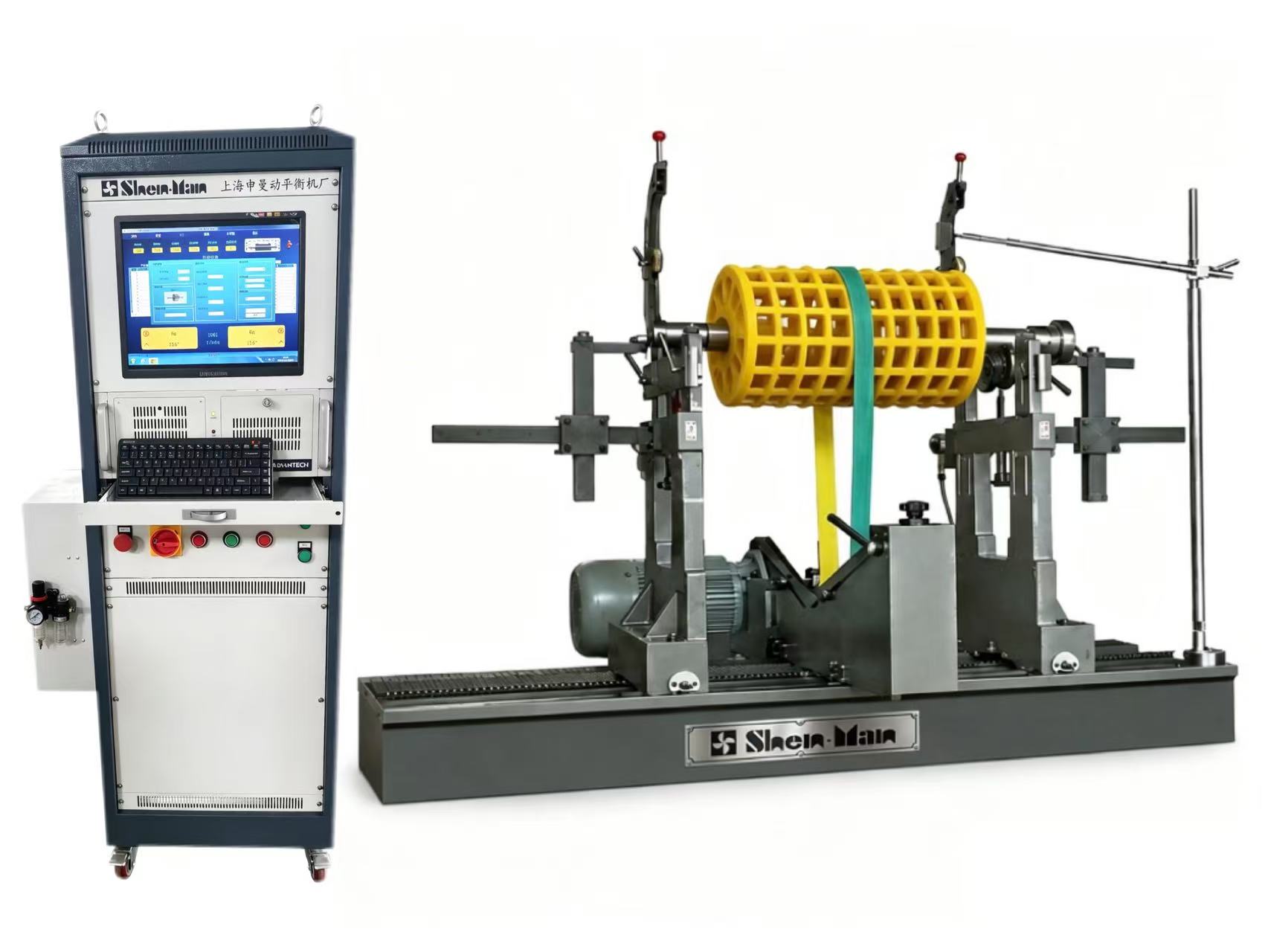

SA-6DZ(160kg) automatic positioning ring with balancing machine

Shanghai Shenman ring belt balancing machine is suitable for 16-6000kg rotor dynamic balance correction. The ring belt drive balancing machine has no residual unbalance of the universal coupling itself and the unbalance error caused by the coupling fixture, which truly guarantees the balance quality of the workpiece, improves the balance accuracy, and the ring belt drive is convenient to load and unload, and the work efficiency is high.

SA-6DZ(160kg) automatic positioning balancing machine is the company's own design and manufacture of ring belt balancing machine, suitable for small and medium-sized printing plate roller, roller, shaft, motor and other small motor industrial field rotating workpiece balance correction. This machine adopts the ring belt drive, there is no residual unbalance of the universal coupling itself and the unbalance error caused by the coupling fixture, so the balance quality of the workpiece is truly guaranteed, the balance accuracy is improved, and the ring belt drive is convenient for loading and unloading. High work efficiency. Use multi-speed motors to achieve a variety of balanced speeds to meet different workpiece requirements. The measurement system adopts SMC microcomputer measurement system. The speed, magnitude and phase are all displayed digitally. The 6 types of rotors can be selected. The display is intuitive and can be memorized. The unbalance is directly displayed with "g. The electromechanical transducer adopts piezoelectric (magnetoelectric) sensor, which has the characteristics of large output, reliable performance and high sensitivity.

equipment:
Automatically stop at the unbalanced position of the workpiece and mark it automatically (optional)
Automatic positioning, greatly reducing the error caused by human judgment.
Using a unique mechanical structure, strong resilience, good stability, high balance efficiency
operating features:
The color display is used for man-machine dialogue, and the geometric size parameters of the workpiece are set one by one through the keyboard.
Two-sided measurement (synthetic quantity display can be selected).
Display units in g or mg
All parameters of thousands of different specifications and models can be stored to balance the measurement results.
Equipped with "electrical standard rotor" self calibration, compensation and so on.
It can be automatically doted at the unbalanced position of the rotor (optional) to facilitate balance correction on the weight-removing machine.
Self-set balance speed, controlled by the computer, eliminating the need to debug or replace the pulley.
Equipped with automatic de-weighting (weighting) equipment interface, which is convenient for users to develop de-weighting (weighting) system.
A conventional micro printer (optional) is available.
