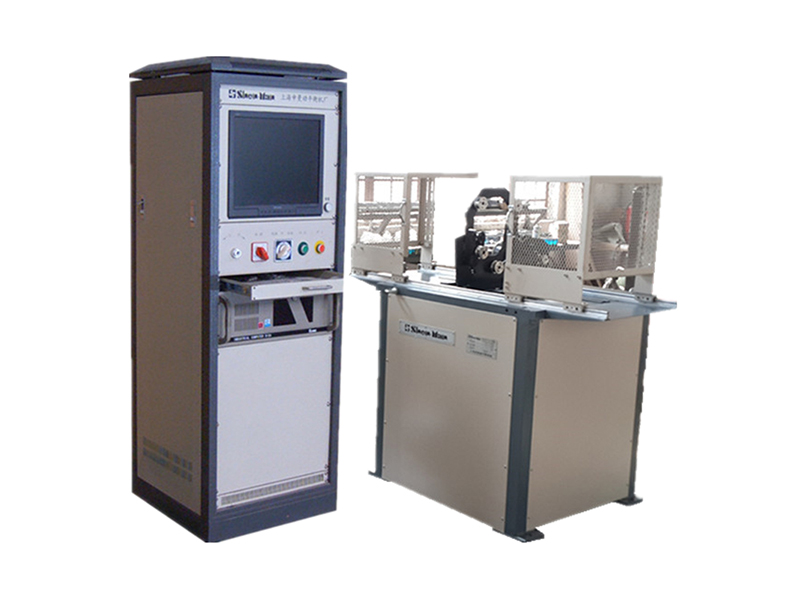

SA-4T(16KG) ring with balancing machine
Shanghai Shenman ring belt balancing machine is suitable for 16-6000kg rotor dynamic balance correction. The ring belt drive balancing machine has no residual unbalance of the universal coupling itself and the unbalance error caused by the coupling fixture, which truly guarantees the balance quality of the workpiece, improves the balance accuracy, and the ring belt drive is convenient to load and unload, and the work efficiency is high.
SA-4T(16KG) ring belt balancing machine is 16KG. The driving mode adopts frequency conversion stepless speed regulation. The speed regulation device is realized by the frequency converter instructing the motor to adjust the rotating speed, and then the belt pulley drives the ring belt to drive the workpiece. The machine is simple to operate, safe to use, modular design, and equipped with advanced computer LCD color display system.
| SA-4T ring with balancing machine | |
| 1. Maximum mass of workpiece | 16KG |
| 2. Maximum diameter of workpiece | 300mm |
| 3, workpiece support shaft diameter range | 8~40mm |
| 4. Maximum distance between two supporting centers | 80~600mm |
| 5. Chassis | safety cover left and right running open safety cover with shutdown function |
| 6. Balance speed | 180~2800r/min |
| 7. Minimum reachable residual unbalance | A≤0.5emar(g﹒mm/kg) |
| 8, motor power | 0.37KW DC motor |
| 9. Unbalance reduction rate Urr(%) | ≥ 95 |
| 10. Power Configuration | three-phase/380V/50HZ |
| 11. Electric measuring box | 17 inch LCD (NEC) |
| 12, with independent control cabinet | self-research |
| 13, inverter power | 0.75KW |
| 14, photoelectric sensor | uses a light sensor Beijing Aerospace |
| 15, ring belt | V-shaped transmission plates made by Shenman |
| 16, ceramic piezoelectric sensor | Beijing Aerospace |
| 17, Computer Industrial Control System | Advantech |
| 18, dynamic balance test plate | CAS-602 |
| 19, Random Printing System | A4 inkjet printer |
| 20, electrical and electronic control system spare parts | Siemens |
