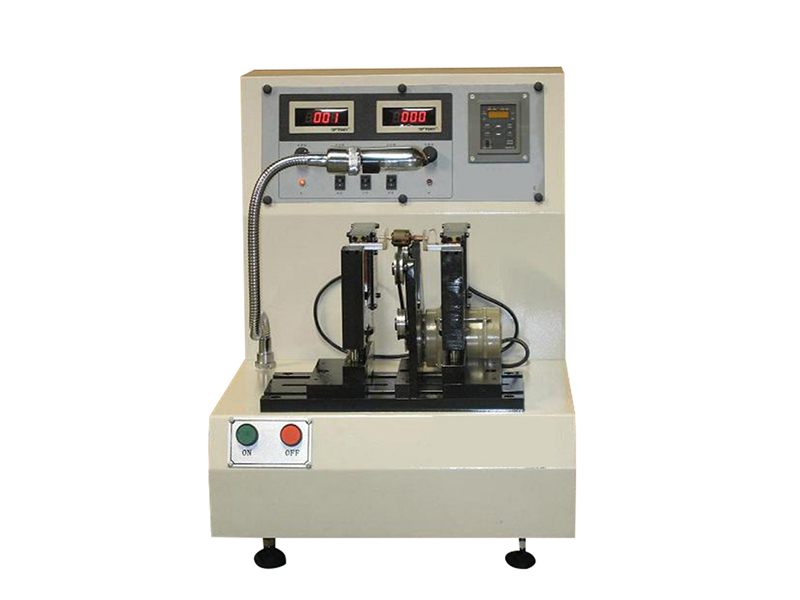

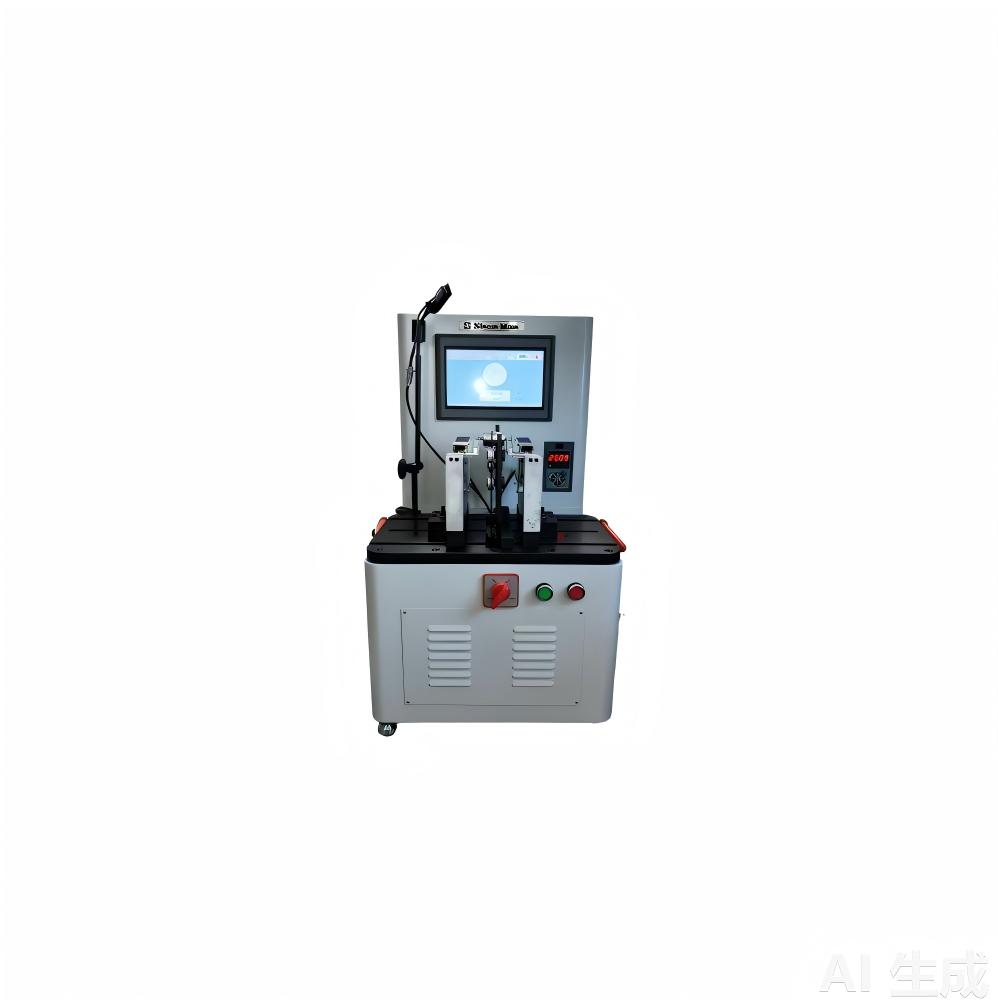

RYQ-1 Soft Support Micro Rotor Balancing Machine
Created on：2026-04-18 14:35
넶PV：0
RYQ-1 Soft Support Micro Rotor Balancing Machine
advantages:
No shutdown, simple operation, high balance efficiency, strong resilience, good stability, ring belt drive
Scope of application:
Suitable for micro rotor, power tools, hair dryer, toy motors and other small motor industrial fields
| RYQ-1 micro rotor balancing machine (general soft support balancing machine) technical parameters | |
| Workpiece mass range (kg) | 0.01~0.5 |
| Max. diameter of workpiece (mm) | 50 |
| Distance between two supports (mm) | 15-100 |
| Bearing Shaft (mm) | 2-10 |
| ring belt drive (mm) | 10-15 |
| Balance speed (r/min) | 1200~2400 |
| Motor power (kw) | 0.06 |
| Minimum achievable residual unbalance emar g • mm/kg | ≦ 0.3 |
| unbalance reduction rate URR(%) | ≧ 95 |
