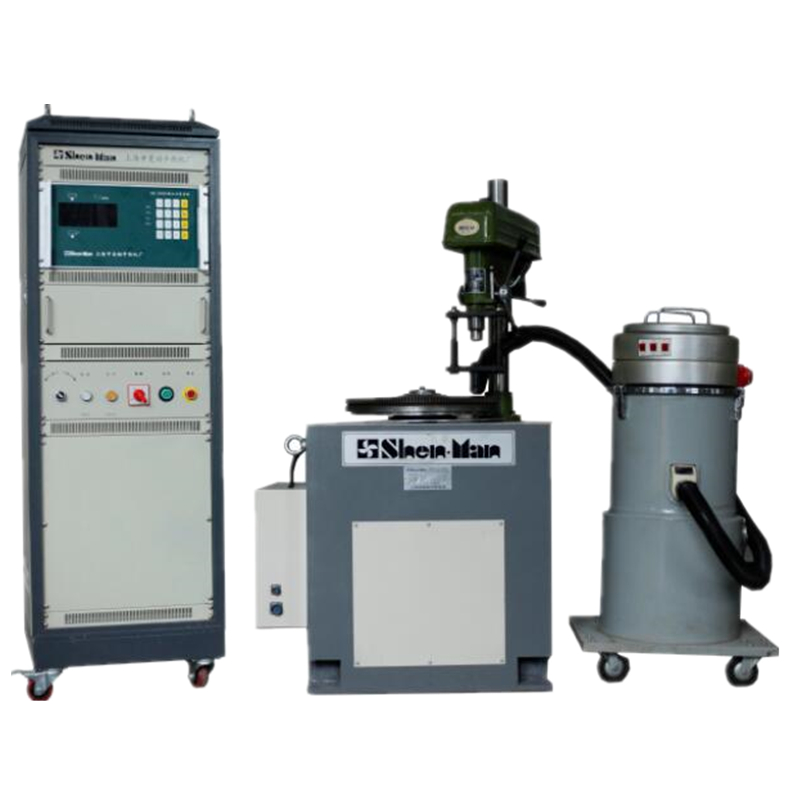

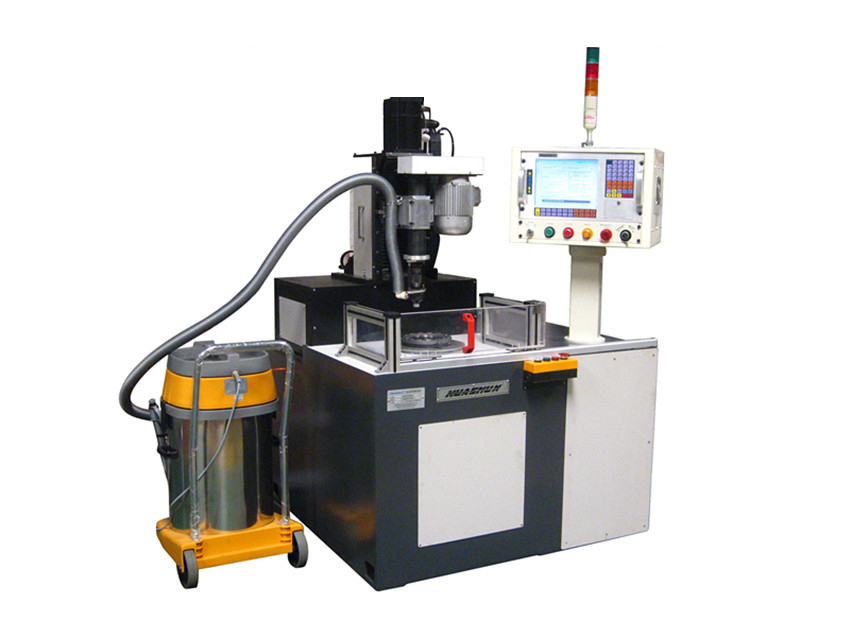

(100kg)SC-6 with vacuum cleaner vertical balancing machine
Created on：2026-04-18 14:39
넶PV：0
(100kg)SC-6 with vacuum cleaner vertical balancing machine
Scope of application:
Fans, fans, flywheels, impellers, chucks, brakes, clutches, brake drums, grinding wheels, saw blades, pulleys and other disc-shaped workpieces.
product advantages:
with vacuum cleaner unit
High precision and high efficiency
Easy operation, high sensitivity, good stability
Memory, display, print, fixture compensation function
Value, speed, phase all digital display
| (100kg)SC-6 with vacuum cleaner vertical balancing machine technical parameters | |
| workpiece (kg) | 100 |
| workpiece (mm) | 900 |
| workpiece (mm) | 200 |
| Electric measuring box | microcomputer digital display |
| Motor power (kw) | 3 |
| Minimum reachable residual unbalance emar(g · mm/kg) | ≤ 5 |
| unbalance reduction rate URR(%) | ≥ 95% |
| Power Configuration | three-phase/380V;50HZ |
| Balance speed (r/min) | 700 |
| Vacuum Cleaner Parameters | |
| flow | 3.3(m3/min) |
| Dust bucket flow | 30L |
| Motor | single phase 3 × 1000W |
| true capacity | ≥ 22kpa |
