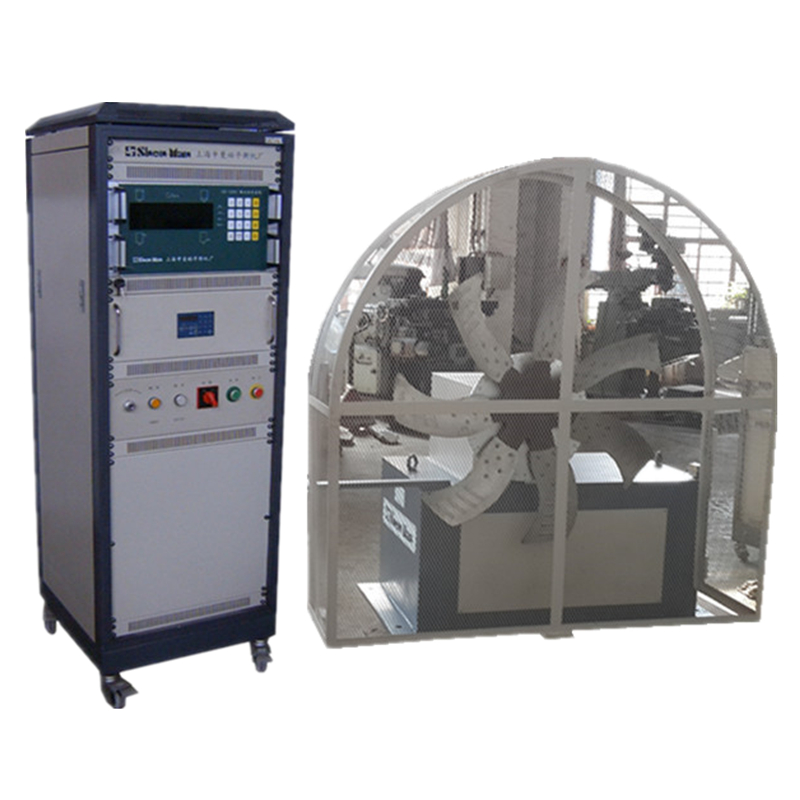

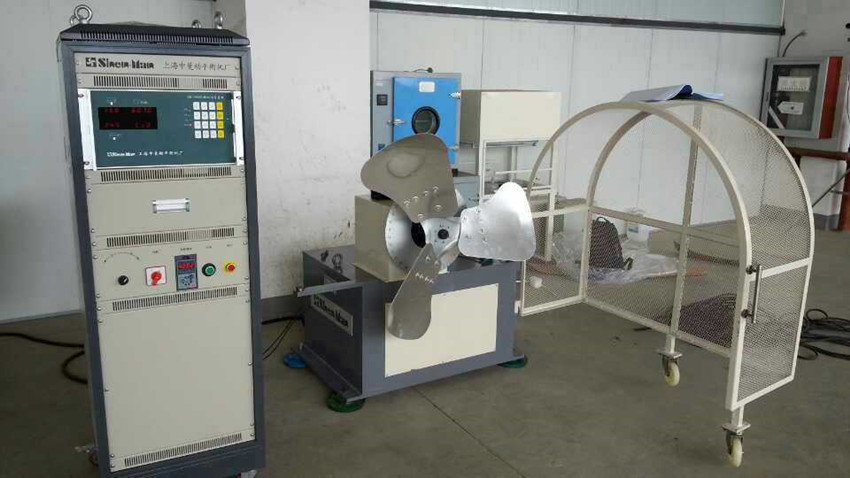

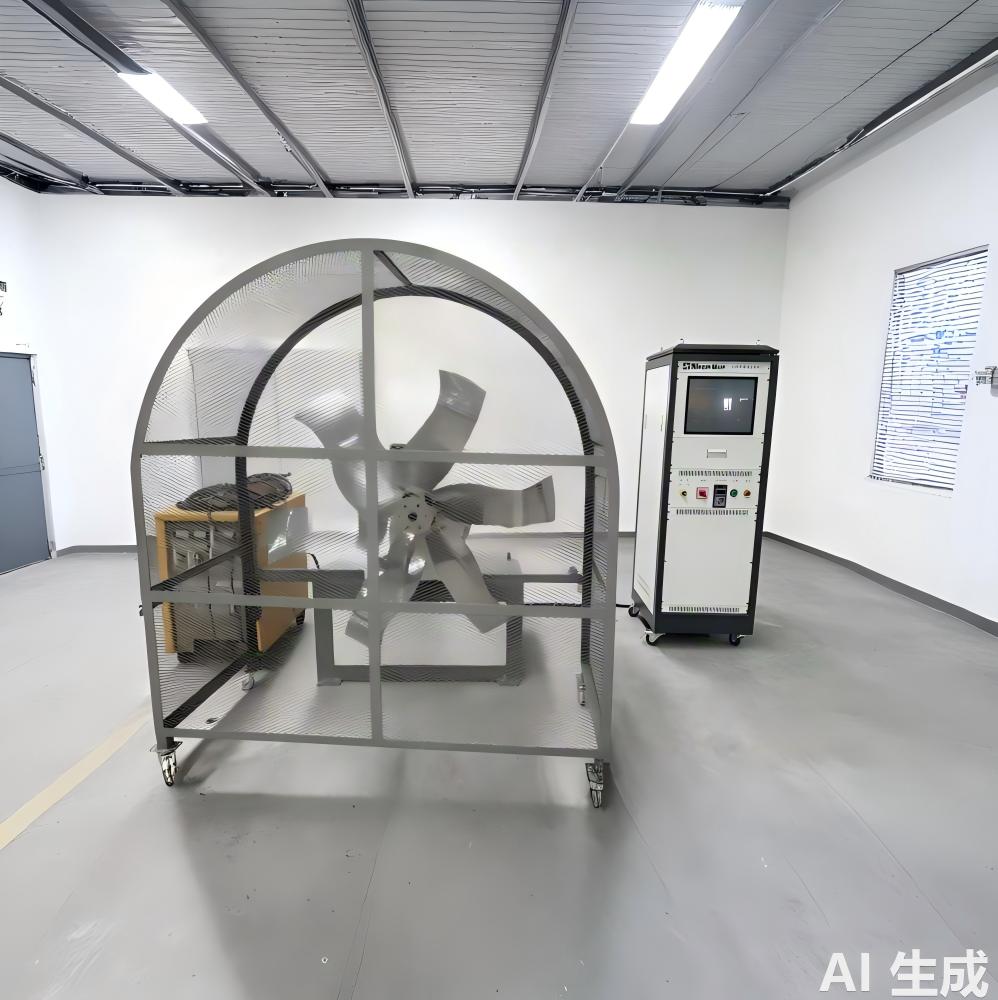

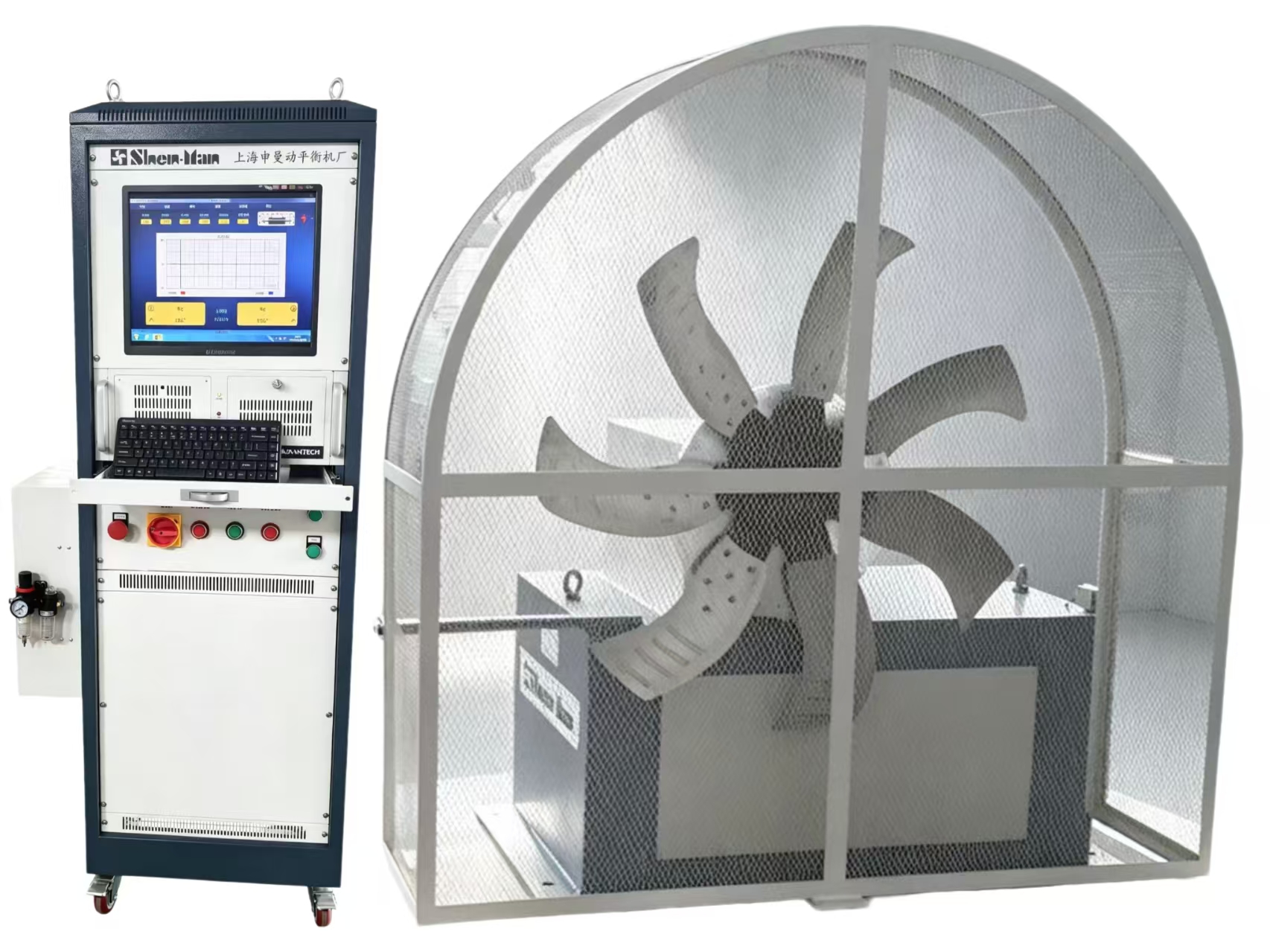

SG-4(30KG) with protective cover single-sided vertical balancing machine
Shenman single-sided verticalDynamic balancing machineis a fast-developing and widely used balancing machine equipment. It is mainly suitable for balancing various disc-shaped parts such as flywheels, large impellers, chucks, large clutches, pulleys, and large blades.
Shenman double-sided vertical balancing machine has the advantages of high precision, high efficiency and convenient operation. Double-sided vertical balancing machine adopts single-station structure of casting base and aluminum alloy protection (surrounding protection); Single and double-sided balance measurement can be selected at will. The whole machine is suitable for dusty environment, independent control cabinet, safety protection of mechanical parts, centralized overall structure of equipment and convenient use.
| SG-4 with protective cover single-sided horizontal/vertical balancing machine technical indicators | |
| Maximum mass of workpiece | 30KG |
| workpiece | 1400mm |
| workpiece | 200mm |
| motor power 4KW | (4-stage motor) |
| Minimum achievable residual unbalance | ≤5 emar(g﹒mm/kg) |
| Unbalance reduction rate | ≥90 Urr(%) |
| Power Configuration | three-phase/380V/50HZ |
| Balance speed | 200~600(r/min) |
| Equipped with fixture | Workpiece drawings provided by the purchaser |
| Equipped with frequency converter | 4KW |
| protection device | Equipped with protective cover |
| Equipped with independent control cabinet | (including electric measuring box) |
| Electric measuring box | Adopting Microcomputer Digital Display SMC-2000 Operating System |
