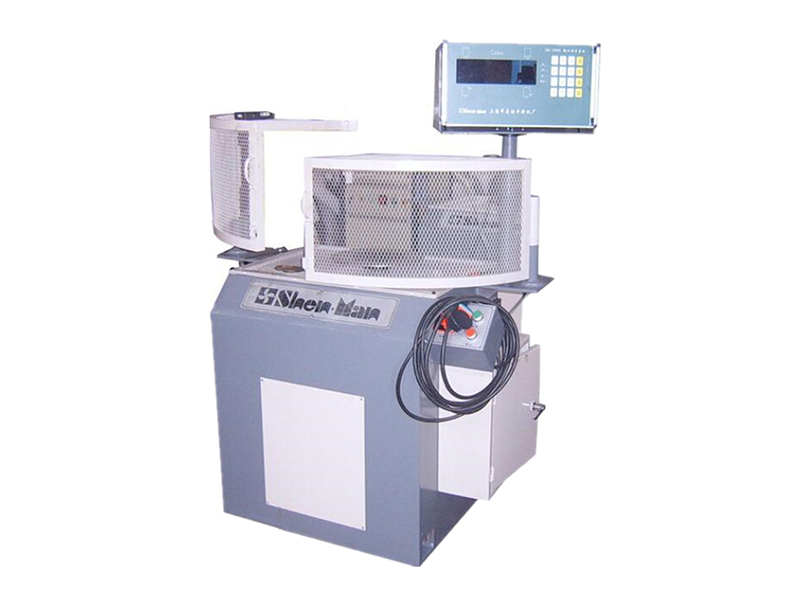

YLS double-sided vertical self-driven balancing machine
5 ~ 16kg YLS double-sided vertical self-driven balancing machine function description:
1. Digital display shows the speed, supporting mode and magnitude and phase of correction surface
2. The system has its own self-inspection function to accurately carry out fault self-inspection
3. The size parameters of ten kinds of workpieces can be stored to facilitate the conversion of workpieces with changeable specifications and avoid complicated input work.
4. With indexing function, it can quickly find out the position of unbalance for workpieces that cannot be processed at any angle.
5. Calibration and fixture eccentricity compensation functions support users to randomly check the accuracy of detection and adjustment.
6. Users can choose the method of weighting and de-weighting according to their needs.
7, the production of electrical standard rotor, more convenient for users to inspect and adjust the equipment
8. Optional panel printer to print the balance result report in real time
9. Optional automatic positioning system
| YLS double-sided vertical self-driven balancing machine technical parameters | |
| workpiece (kg) | 5-16 |
| workpiece (mm) | 600 |
| workpiece (mm) | 300 |
| Electric measuring box | microcomputer digital display |
| Workpiece driving mode | self-drive |
| Minimum reachable residual unbalance emar(g · mm/kg) | ≤ 5 |
| Fixture Specifications | Equipped with a set of special fixture |
| measuring workpiece | Workpieces provided by the purchaser |
| Support mode | Hard support steel structure form |
| protection device | with safety shield |
| unbalance reduction rate URR(%) | ≥ 90 |
| Power | 12v |
| Balance speed | frequency conversion stepless speed regulation ≤ 5000r/min |
