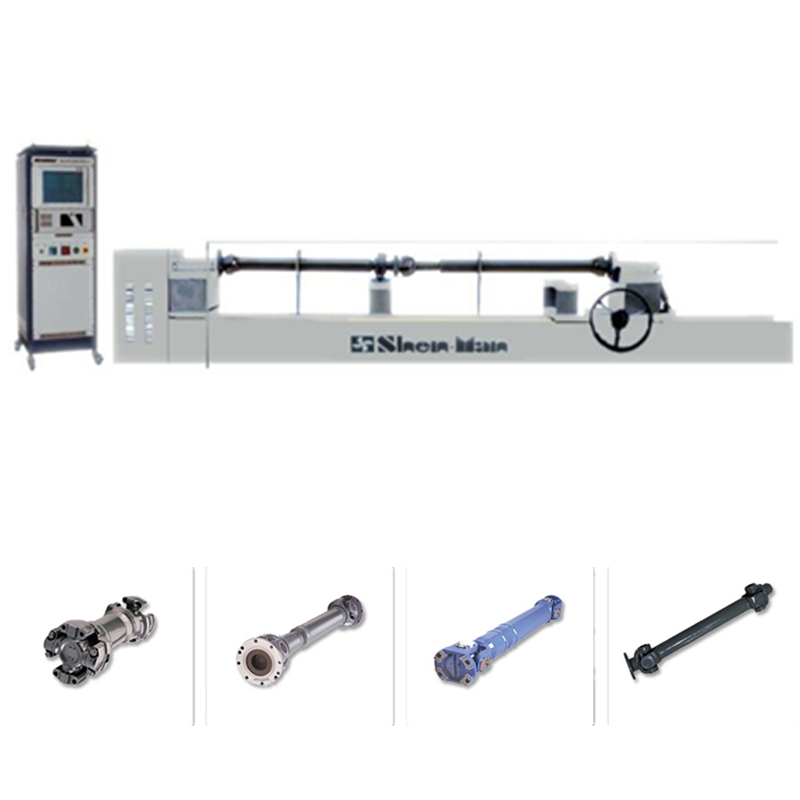

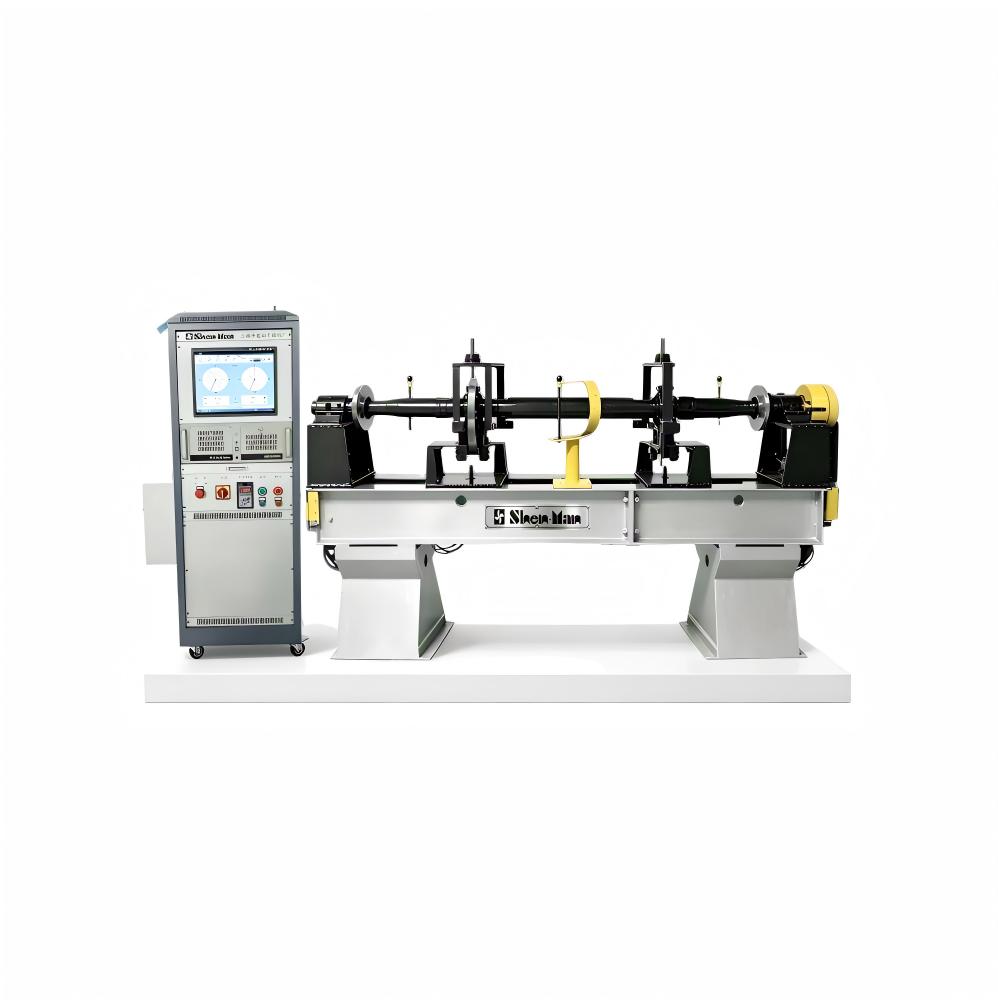

10~100KG three pendulum drive shaft balancing machine
10~100KG three pendulum drive shaft balancing machine
equipment:
1. Equipped with industrial control system -17 inch color LCD screen
2. Double selection of Chinese and English system in Widows
3, General microcomputer balance measurement system
4. Fully automatic program-controlled amplification module
5. Any workpiece calibration function, any angle fixture compensation and workpiece information storage
6. Qualified quantity display, measurement cycle adjustment function
7. Automatic signal amplification and manual amplification adjustment, signal self-test, automatic diagnosis
8, vector graphics, waveform and imbalance, while displaying
9. The remaining unbalance amount g and unbalance force distance g cm and g mm can be selectively displayed
equipment features:
1. The length of the machine bed can be adjusted according to user requirements
2. Balance angle automatic tracking function
3. Automatic parking positioning function
4. Vector angle decomposition function
| Three pendulum drive shaft balancing machine technical specifications | |
| Workpiece quality range | 10~100Kg |
| workpiece | 2600mm (standard) lengthened according to user requirements |
| pendulum structure | Hard support swing frame |
| Balance speed r/min | 1600/3200/2400/4800 variable frequency speed regulation |
| Minimum remaining unbalance | ≤5g.cm/kg |
| unbalance% | ≥ 95% |
| Motor power | 2 / 2.4kw |
| speed regulation mode | variable frequency speed regulation |
| transmission mode | universal joint (tripod) |
| coupling to the center of the right support seat | 1500mm |
