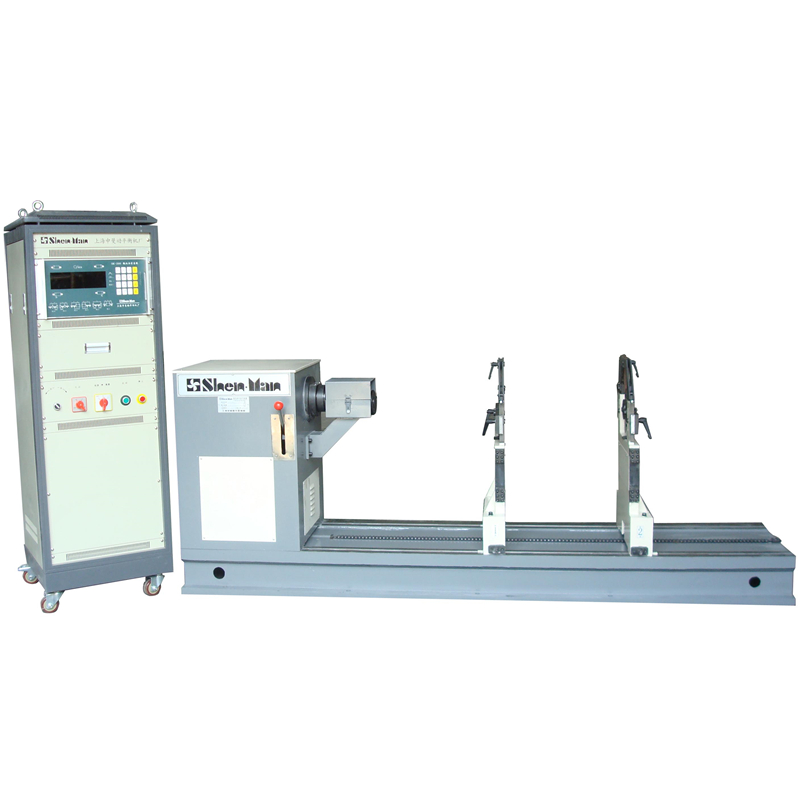

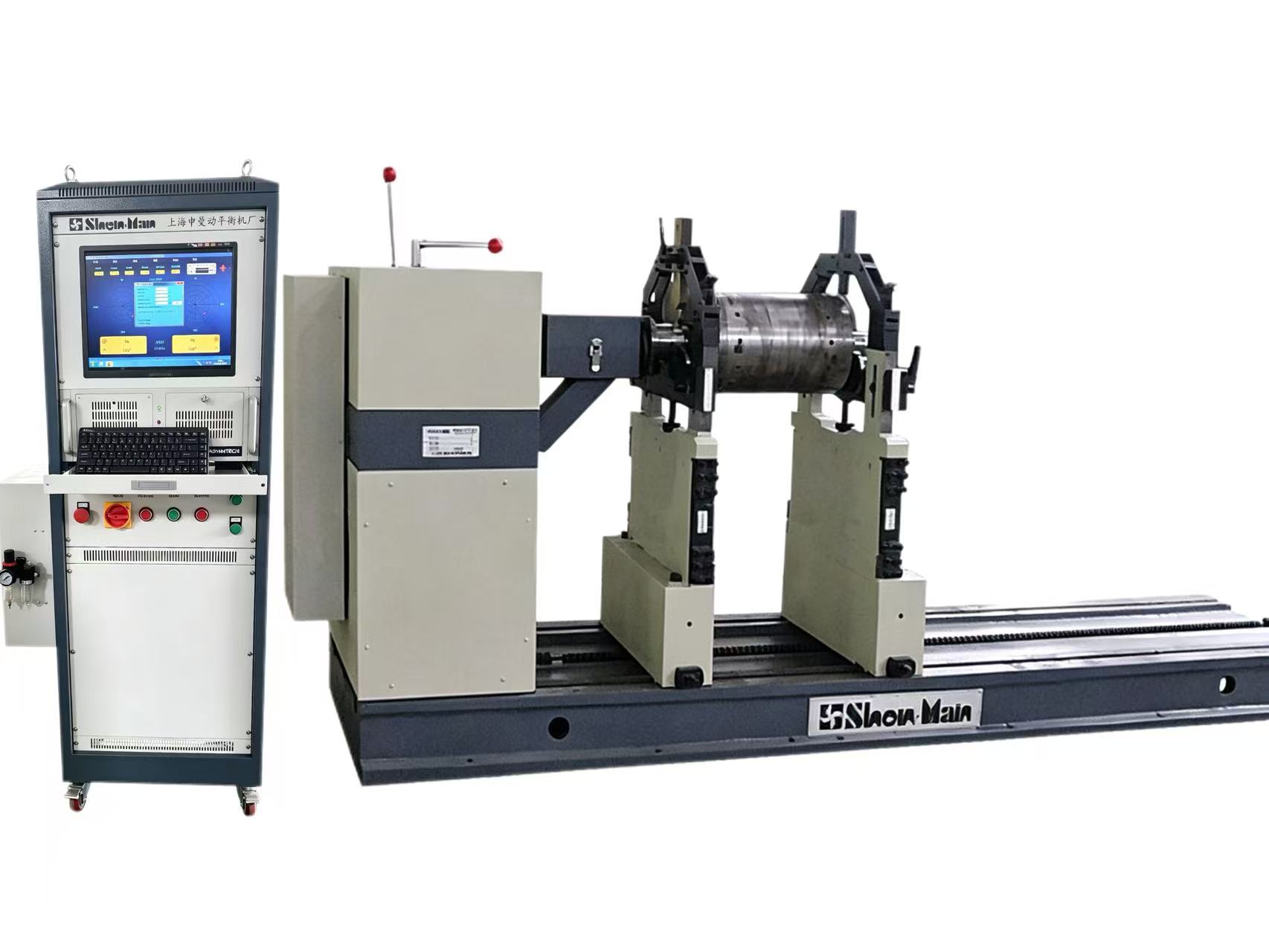

(300KG)SB-7T universal joint hard support balancing machine
Shanghai ShenmanUniversal joint dynamic balancing machineSuitable for 5kg-30T paper dryer, blower rotor, turbine rotor, large fan impeller and other rotating body workpiece balance check. The universal joint dynamic balancing machine adopts universal coupling transmission, which can obtain a variety of balanced speeds, and has high precision, convenient operation and high work efficiency.
SB-7T hard bearing balancing machine is one of the company's universal joint drive balancing machine, mainly used in large motors, ceramic machinery, rollers, rubber sticks, fans, rubber sticks, shafts and other rotating parts balance check. This machine adopts universal coupling transmission, can get a variety of balanced speed, and high precision, convenient operation, high efficiency. The measurement system adopts SMC microcomputer measurement system. The speed, magnitude and phase are all displayed digitally. The 6 types of rotors are optional. The display is intuitive and can be memorized. The unbalance is directly displayed with "g. Electromechanical transducer adopts piezoelectric (magnetoelectric) sensor, which has the advantages of large output, reliable performance and high sensitivity.
| (300KG)SB-7T universal joint hard support balancing machine technical parameters | |
| workpiece (kg) | 300 |
| workpiece (mm) | 1260 |
| support shaft (mm) | 10-180 |
| Minimum distance between two support centers (mm) | Min 100 |
| coupling to the right support seat (mm) | 1600 (L=2600) |
| balance speed (r/min) | 480/720/960/1440 |
| Motor power (kw) | 2.4/ 3 |
| Minimum reachable residual unbalance emar(g · mm/kg) | ≤ 1 |
| Unbalance Reduction Rate URR(%) | ≥ 90 |
| Power Configuration | 3 phase/380V ; 50HZ |
| Cardan shaft (N?M) | 100 |
| control system | Equipped with vertical control cabinet, electric measuring box adopts microcomputer digital display |
| Rolling frame middle bearing NSK | (Japan) |
