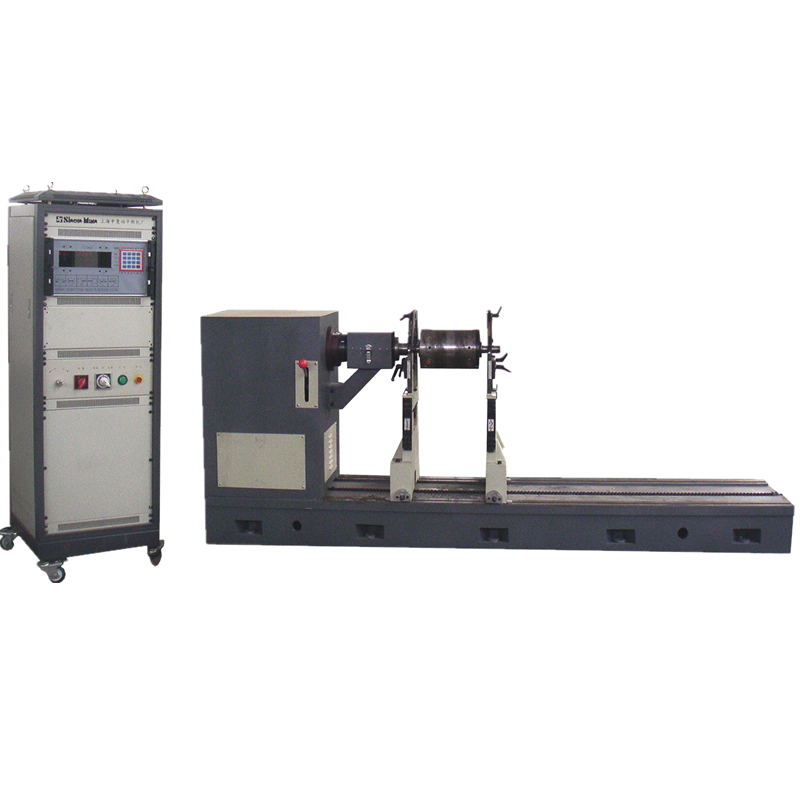

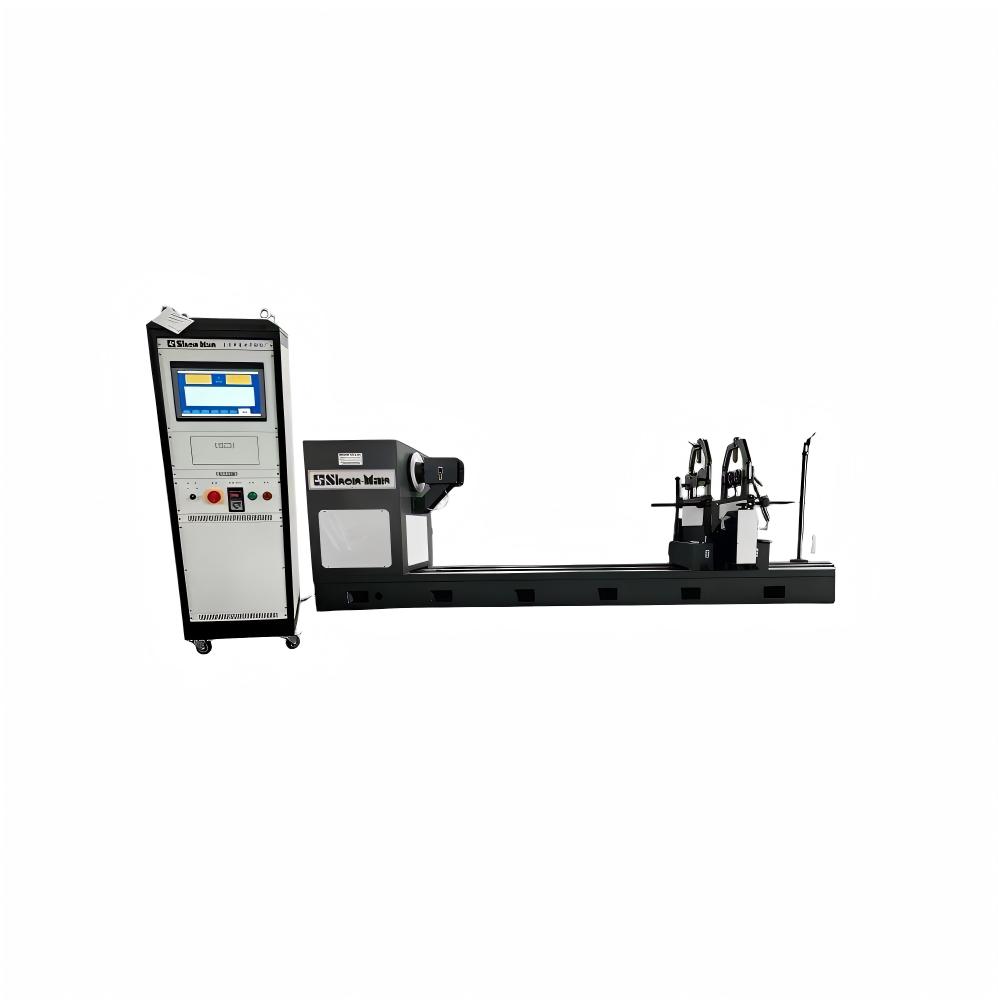

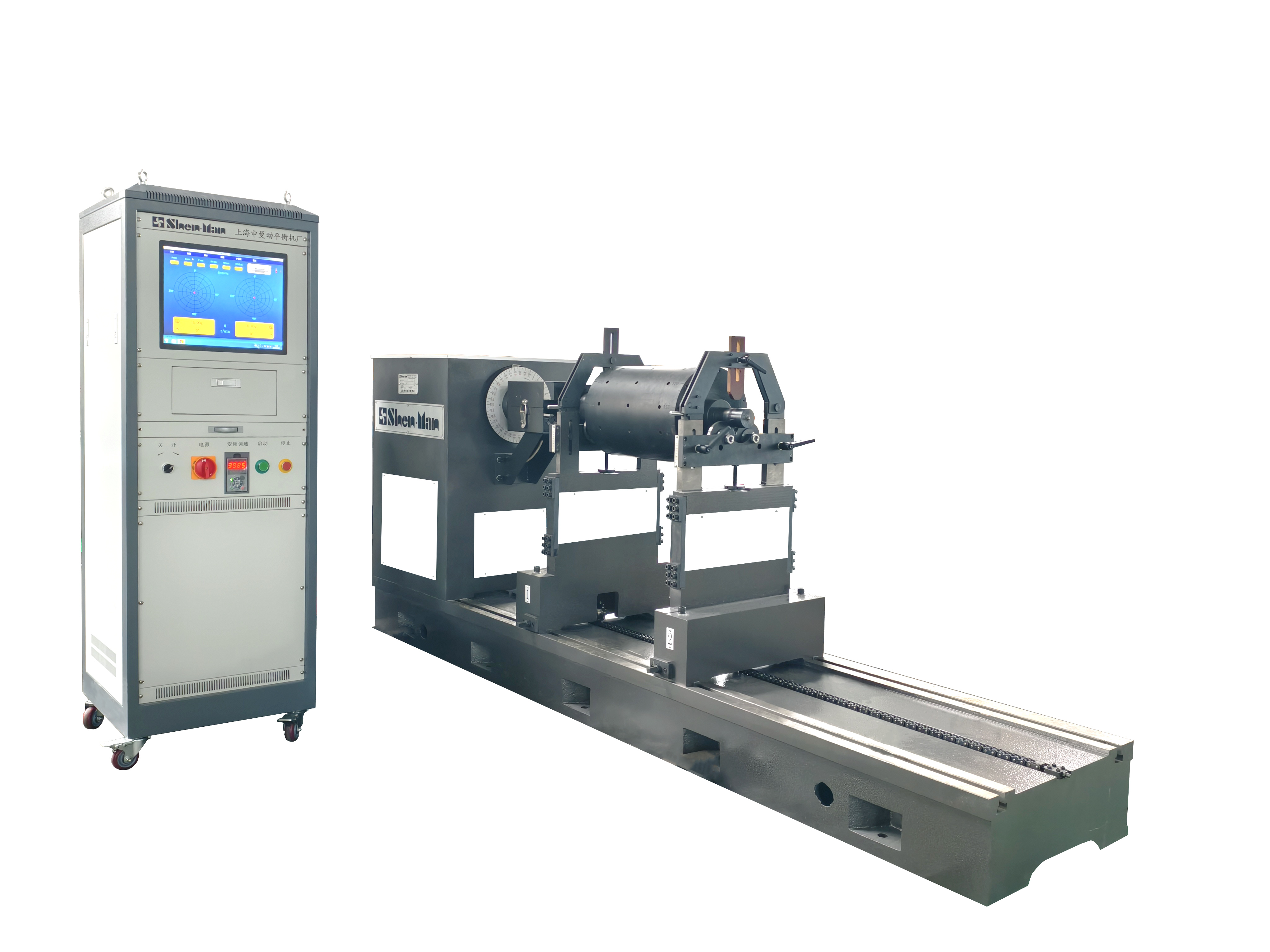

SB-7(160kg) universal joint hard support balancing machine
SB-7 hard bearing balancing machine is one of the company's universal joint drive balancing machine, mainly used in large motors, ceramic machinery, rollers, rubber sticks, fans, rubber sticks, shafts and other rotating parts balance check. This machine adopts universal coupling transmission, can get a variety of balanced speed, and high precision, convenient operation, high efficiency. The measurement system adopts SMC microcomputer measurement system. The speed, magnitude and phase are all displayed digitally. The 6 types of rotors are optional. The display is intuitive and can be memorized. The unbalance is directly displayed with "g. Electromechanical transducer adopts piezoelectric (magnetoelectric) sensor, which has the advantages of large output, reliable performance and high sensitivity.
| SB-7(160kg) universal joint hard support balancing machinetechnical parameters | |
| Workpiece mass range (kg) | 1.5-30 |
| workpiece (mm) | 600 |
| ring belt drive (mm) | 17-150 |
| distance between two supports (mm) | 80-600 |
| support shaft (mm) | 8-40 |
| Balance speed (r/min) | 840/1540 |
| Motor power (kw) | 0.37 |
| Minimum reachable residual unbalance emar(g. mm/kg) | ≤ 0.3 |
| Unbalance Reduction Rate URR(%) | ≥ 95 |
| Electric measuring box | display using microcomputer digital display |
