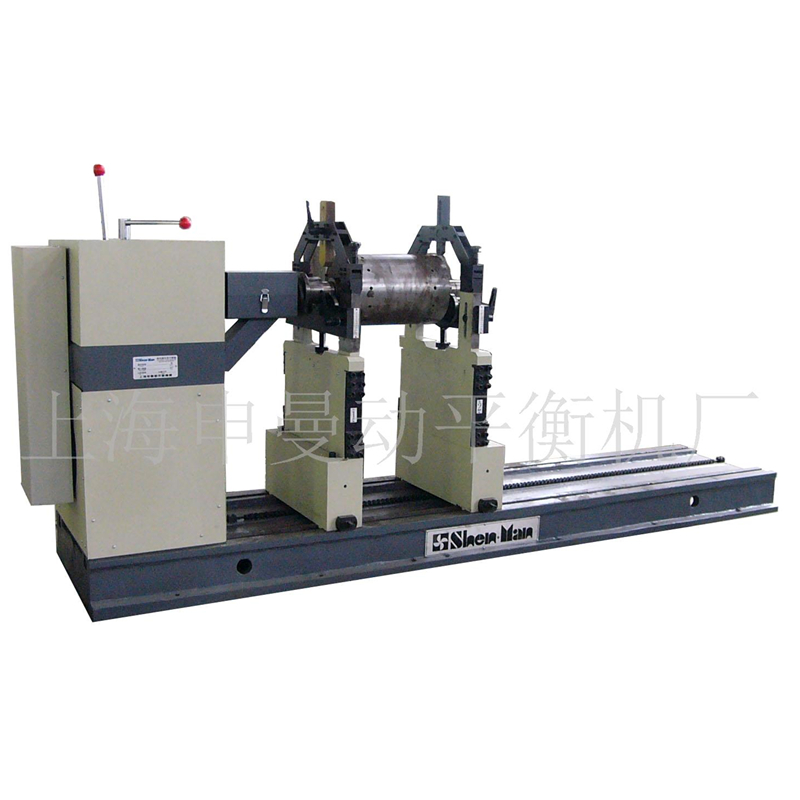

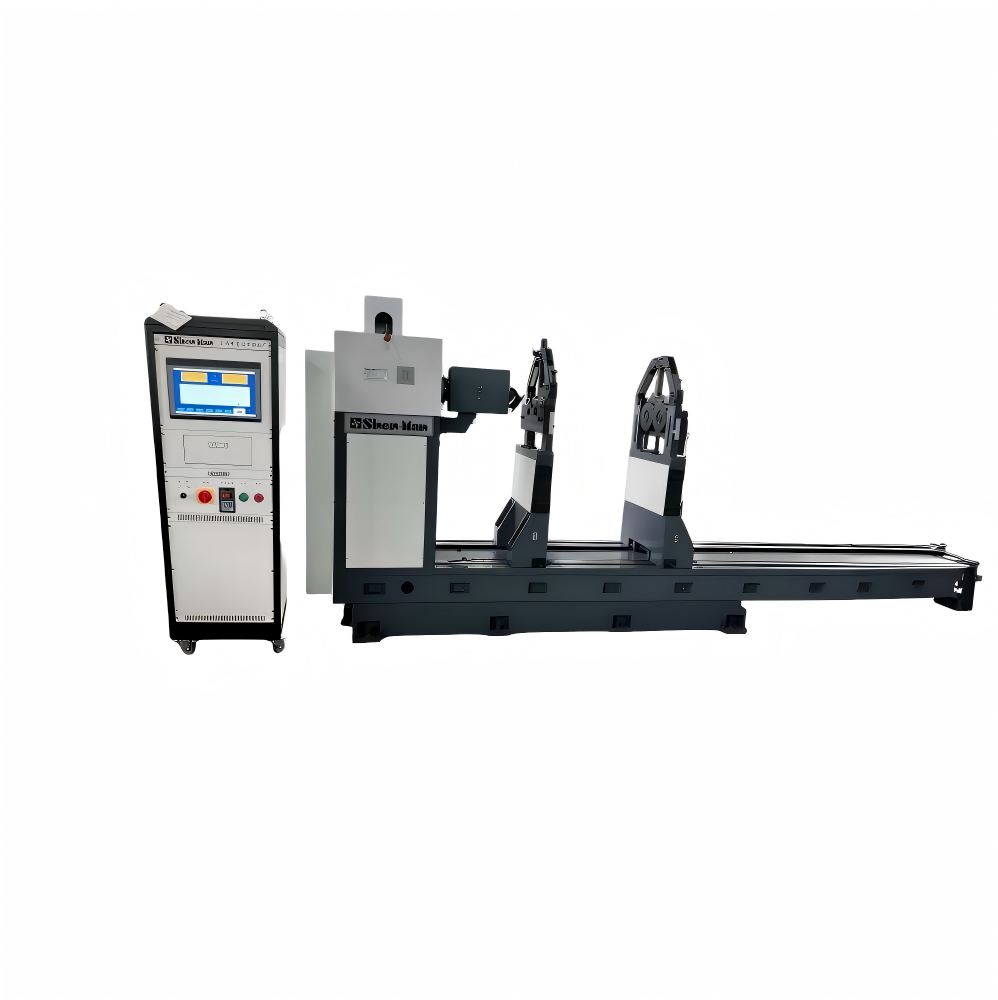

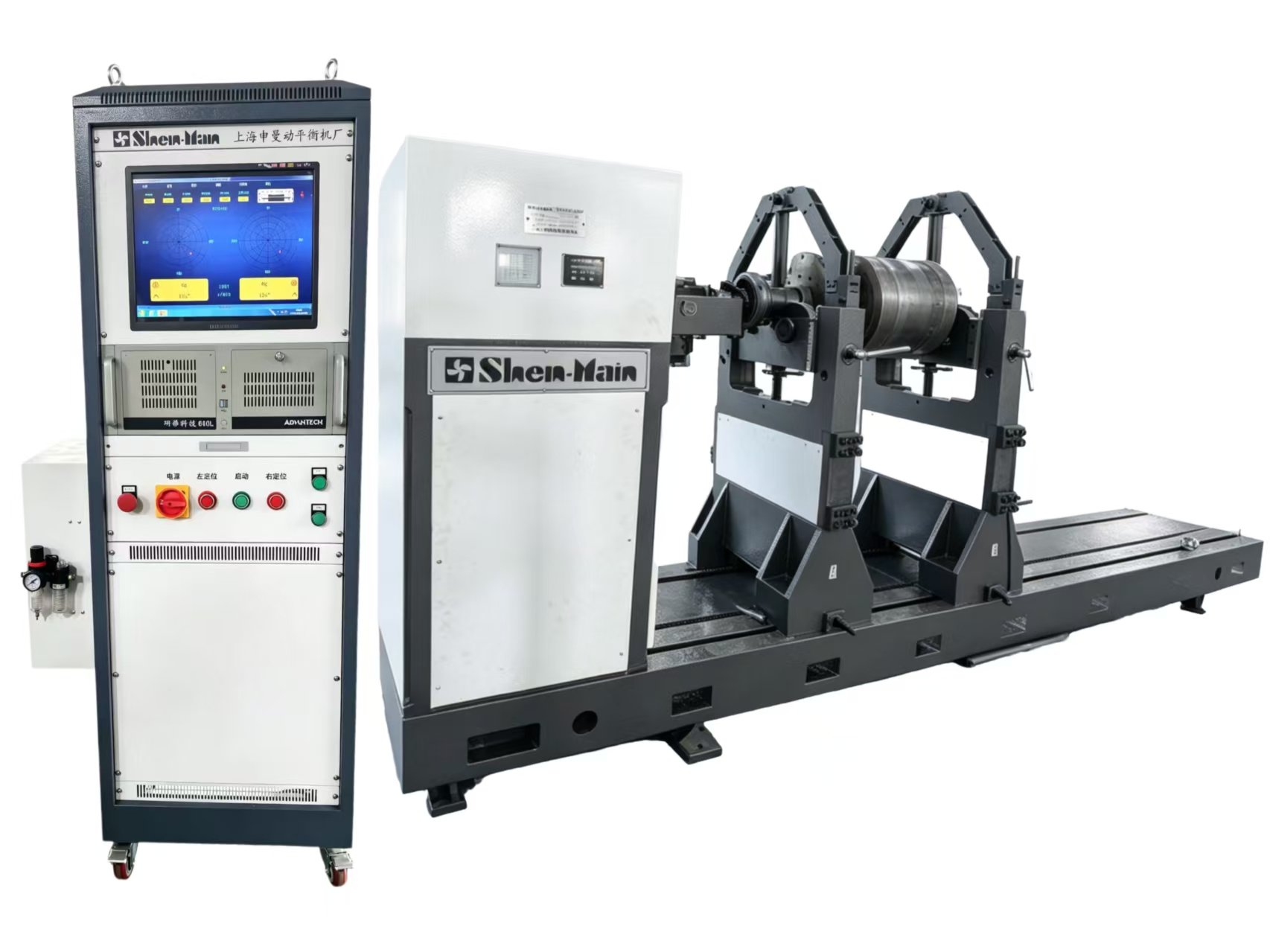

(1000KG)SB-9B universal joint balancing machine
Shanghai Shenman Universal JointDynamic balancing machineSuitable for 5kg-30T paper dryer, blower rotor, turbine rotor, large fan impeller and other rotating body workpiece balance check. The universal joint dynamic balancing machine adopts universal coupling transmission, which can obtain a variety of balanced speeds, and has high precision, convenient operation and high work efficiency.
SB-9 type hard bearing balancing machine is one of the company's universal joint drive series balancing machine, mainly used in large motors, ceramic machinery, rollers, rubber sticks, fans, printing machinery, shafts and other rotating parts balance check. This machine adopts universal coupling transmission, can realize stepless speed regulation, and high precision, high efficiency, convenient operation, etc. The measurement system adopts SMC microcomputer measurement system. The speed, magnitude and phase are all displayed digitally. The 6 types of rotors can be selected. The display is intuitive and can be memorized. The unbalance is directly displayed with "g. Electromechanical transducer adopts piezoelectric (magnetoelectric) sensor, which has the advantages of large output, reliable performance and high sensitivity.
| (1000KG)SB-9B universal joint balancing machine technical parameters | |
| workpiece (kg) | 1000 |
| workpiece (mm) | 1600 |
| support shaft (mm) | 15-240 |
| Minimum distance between two support centers (mm) | Min 300 |
| coupling to the right support seat (mm) | 3000 |
| Balance speed (r/min) | 180-1200 (stepless speed regulation) |
| Motor power (kw) | 4 |
| Minimum reachable residual unbalance emar(g. mm/kg) | ≤ 1 |
| unbalance reduction rate URR(%) | ≥ 95 |
| Power Configuration | three-phase/380V ; 50HZ |
| Cardan shaft (N?M) | 300 |
| with vertical control cabinet | electric measuring box adopts microcomputer digital display (upgradeable LCD industrial control system) |
| Rolling frame middle bearing | NSK (Japan) |
| speed regulating device | with variable frequency speed regulating device |
