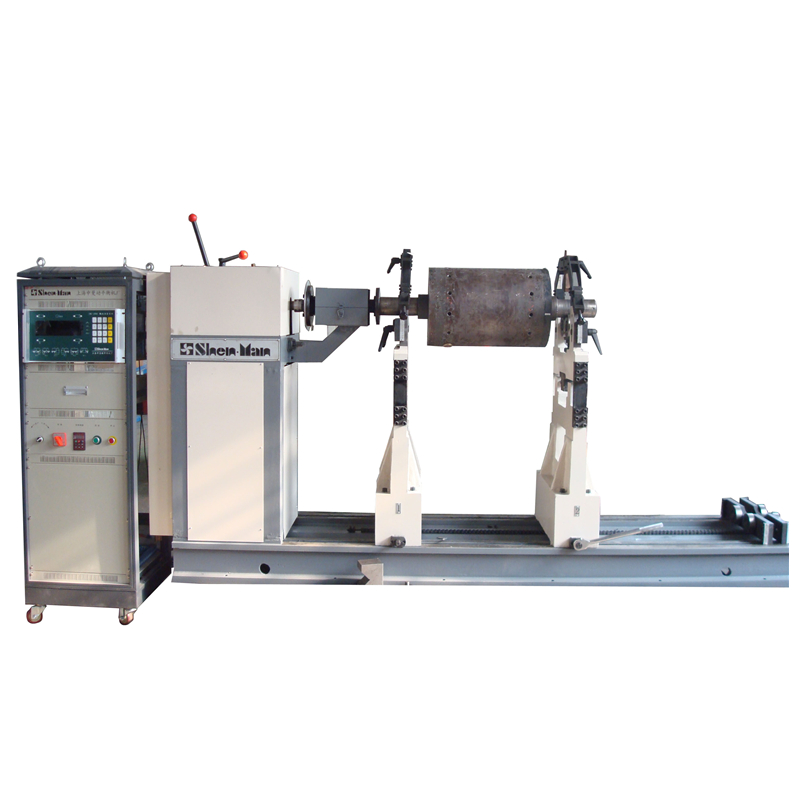

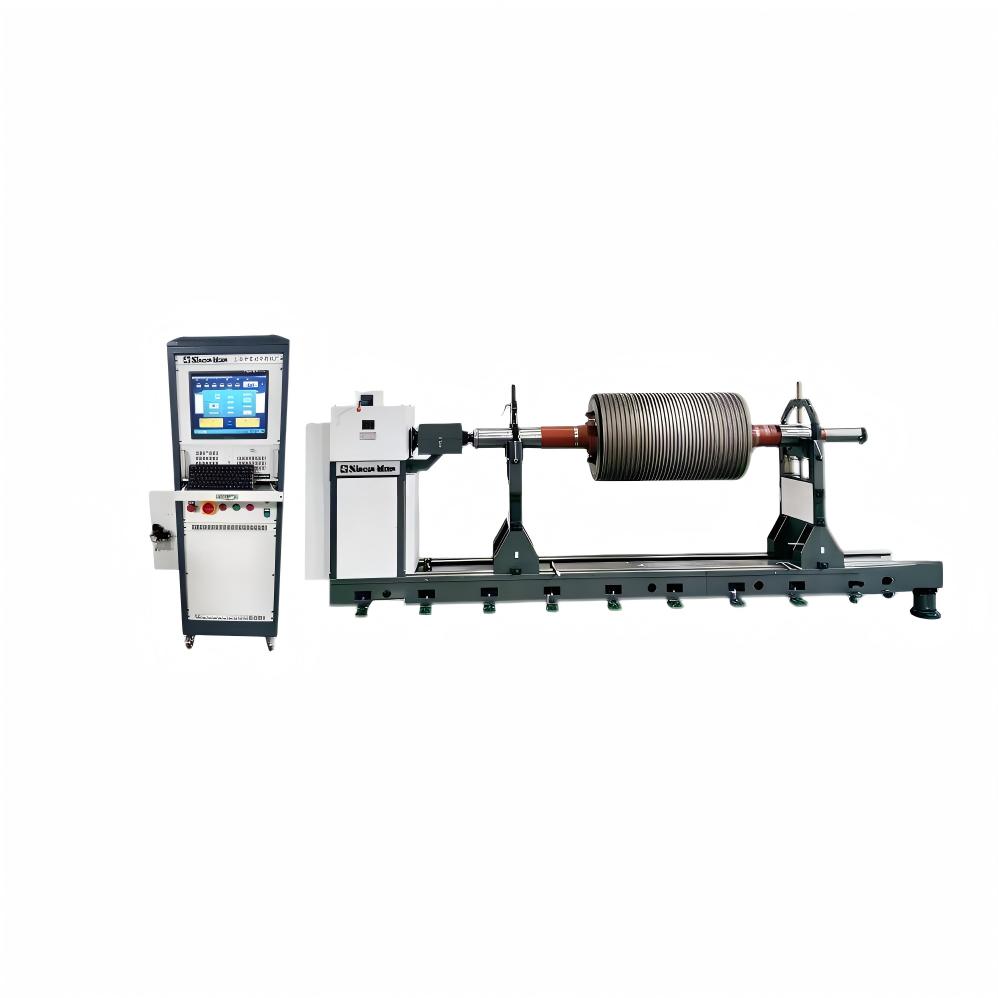

SB-10(3000kg) universal joint drive balancing machine
Shanghai Shenman universal joint dynamic balancing machine is suitable for 5kg-30T paper dryer, blower rotor, steam turbine rotor, large fan impeller and other rotating parts balance check. Universal JointDynamic balancing machineadopts universal coupling transmission, which can obtain a variety of balanced speeds, and has high precision, convenient operation and high work efficiency.
SB-10 type hard bearing balancing machine is one of the company's universal joint drive series balancing machine, mainly used in large motors, ceramic machinery, rollers, rubber sticks, fans, printing machinery, shafts and other rotating parts balance check. This machine adopts universal coupling transmission, can realize stepless speed regulation, and high precision, high efficiency, convenient operation, etc. The measurement system adopts SMC microcomputer measurement system. The speed, magnitude and phase are all displayed digitally. The 6 types of rotors can be selected. The display is intuitive and can be memorized. The unbalance is directly displayed with "g. Electromechanical transducer adopts piezoelectric (magnetoelectric) sensor, which has the advantages of large output, reliable performance and high sensitivity.
| SB-10(3000kg) universal joint drive balancing machinetechnical parameters | |
| workpiece (kg) | 3000 |
| workpiece (mm) | 1600 |
| supporting shaft diameter range (mm) | 15-120,120-240 |
| Minimum distance between two support centers (mm) | Min 300 |
| coupling to the right support seat (mm) | bed customers can choose the length |
| Balance speed (r/min) | 180-1000 (stepless speed regulation) |
| Motor power (kw) | 7.5 |
| Minimum reachable residual unbalance emar(g. mm/kg) | ≤ 1 |
| Unbalance Reduction Rate URR(%) | ≥ 90 |
| Power Configuration | three-phase/380V ; 50HZ |
| Cardan shaft (N?M) | 300 |
| with vertical control cabinet | electric measuring box adopts liquid crystal computer display (digital display, computer customer choice) |
| Rolling frame middle bearing | NSK (Japan) |
| speed regulating device | with variable frequency speed regulating device |
