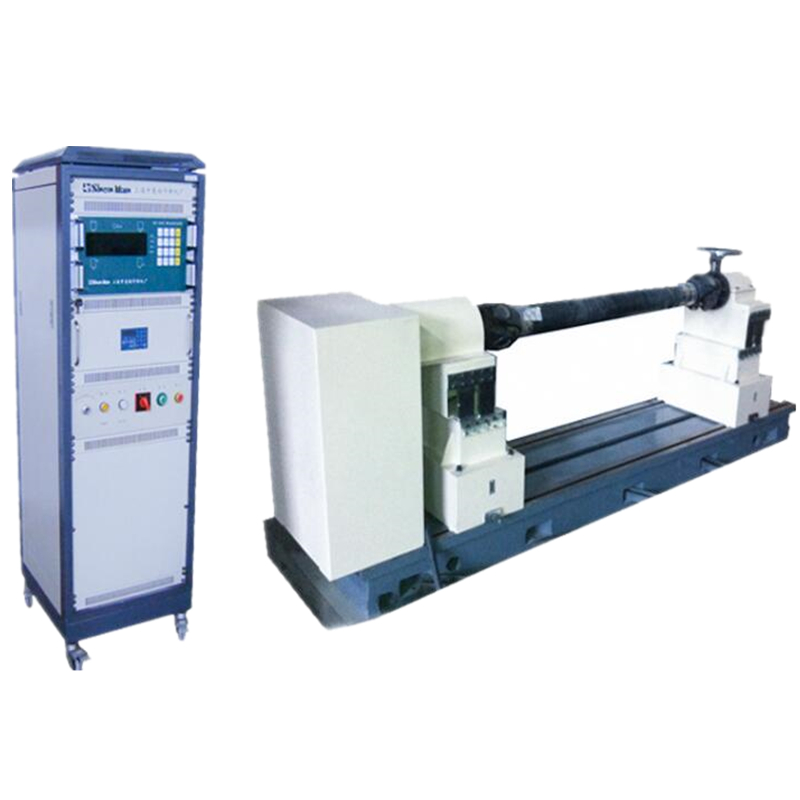

10-100KG SG-8 drive shaft balancing machine
Created on：2026-04-18 14:42
넶PV：0
| SG-8 universal drive shaft balancing machine technical specifications | |
| Workpiece mass range kg | 10~100Kg |
| workpiece | 1260mm |
| bed length | 2600mm |
| pendulum structure | Hard support swing frame |
| Balance speed r/min | 480/720/960/1440 |
| Minimum remaining unbalance | ≤5g.cm/kg |
| unbalance% | ≥ 95% |
| Motor power | 2.4/ 3kw |
| transmission mode | universal joint coupling |
| Independent electric cabinet | LCD Operating System |
| Other Accessories | with printer |
| coupling to the center of the right support seat | 1500m |
