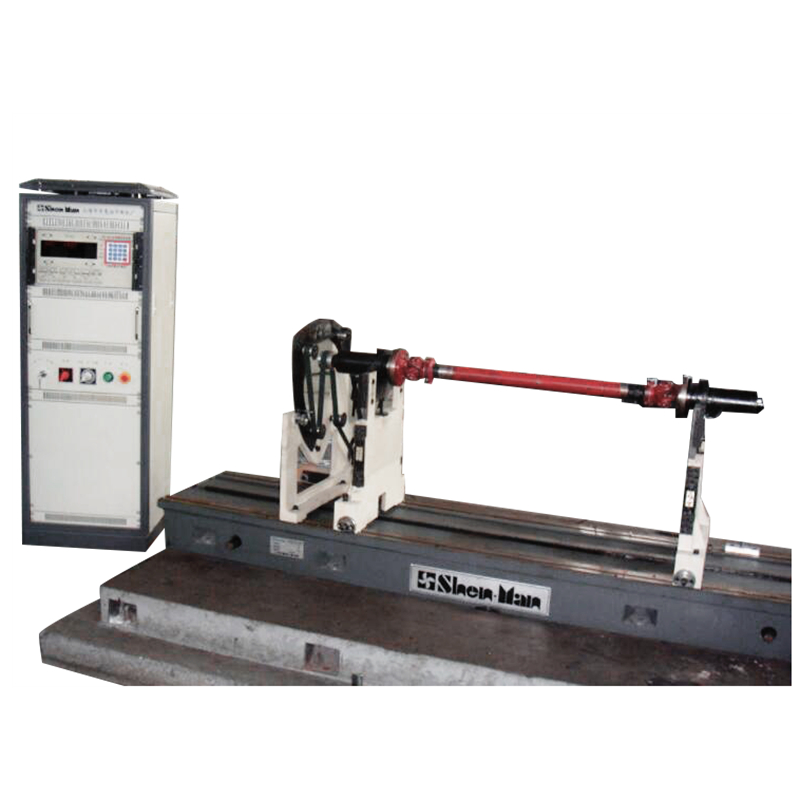

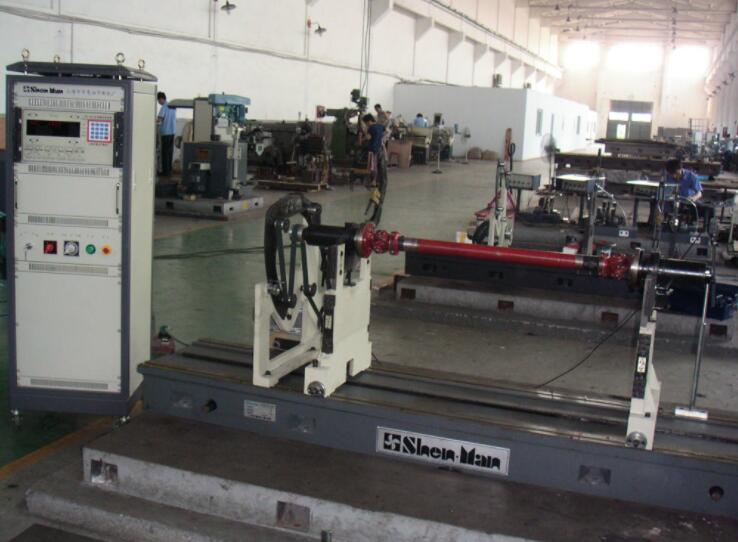

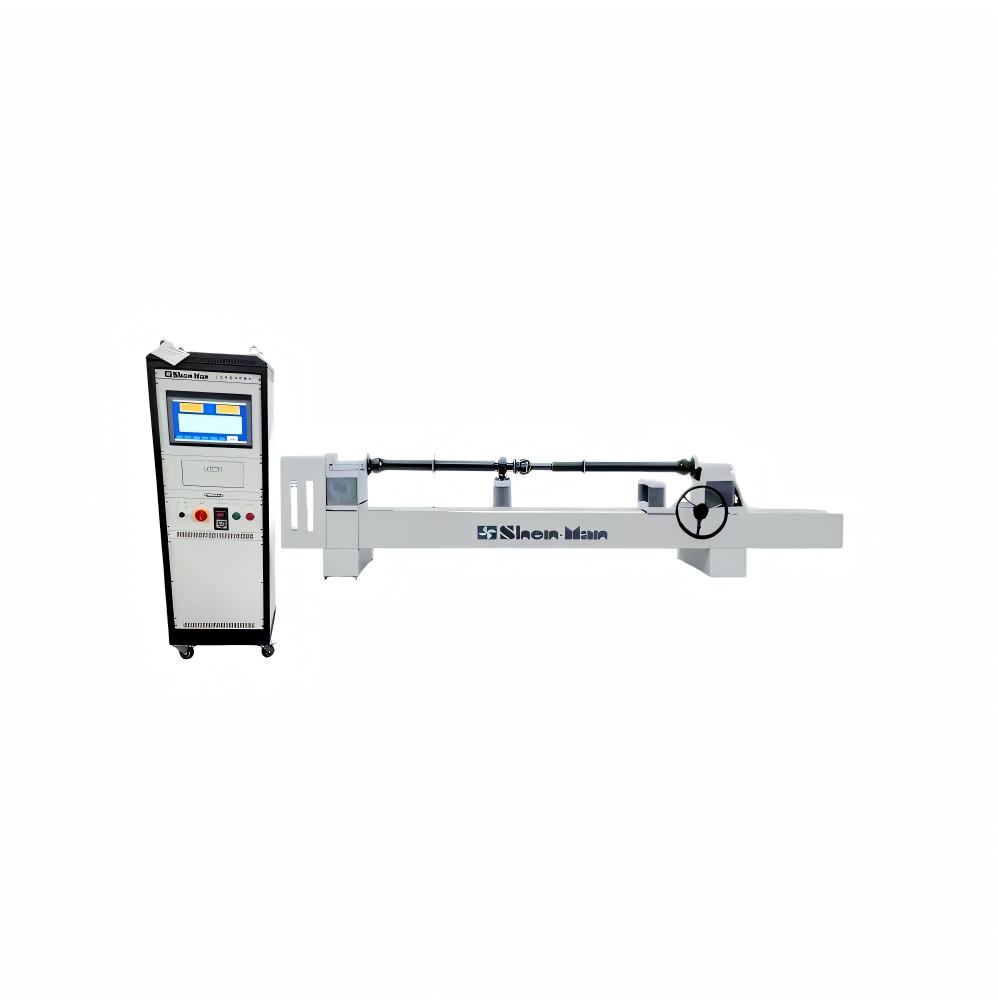

10-100KG multi-function drive shaft balancing machine

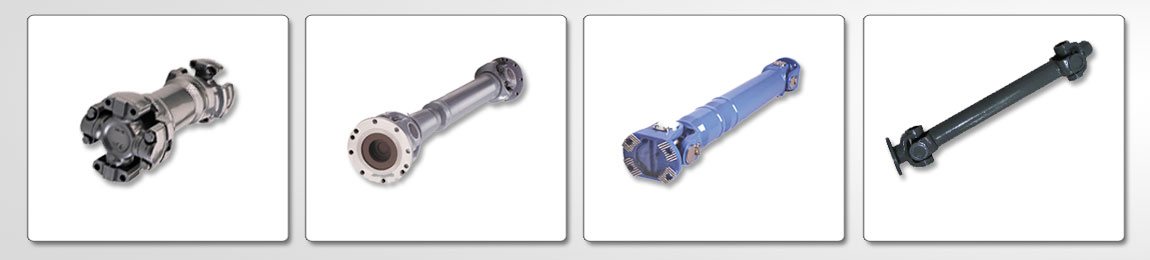

Shanghai Shenman 10~100KG multifunctional drive shaftbalancing machineIt is an ideal equipment for balance check of transmission shafts of automobiles and trains. It can make double-sided dynamic balance correction of various automobile transmission shafts by replacing the fixture of the installation workpiece. Using advanced balance measurement software, with industrial control computer and control cabinet, suitable for all kinds of automobile drive shaft.
10~100KG multi-function drive shaft balancing machinefeatures:
1. The length of the machine bed can be adjusted according to user requirements
2. Balance angle automatic tracking function
3. Adopt microcomputer digital display
4. Automatic parking positioning function
5. Vector angle decomposition function
| 10~100KG multi-function drive shaft balancing machineTechnical Specifications | |
| Workpiece quality range | 10~100Kg |
| workpiece | 2600mm (standard) lengthened according to user requirements |
| pendulum structure | Hard support swing frame |
| Balance speed r/min | 1600/3200/2400/4800 variable frequency speed regulation |
| Minimum remaining unbalance | ≤5g.cm/kg |
| unbalance% | ≥ 95% |
| Motor power | 2 / 2.4kw |
| speed regulation mode | variable frequency speed regulation |
| transmission mode | universal joint (tripod) |
| coupling to the center of the right support seat | 1500mm |
