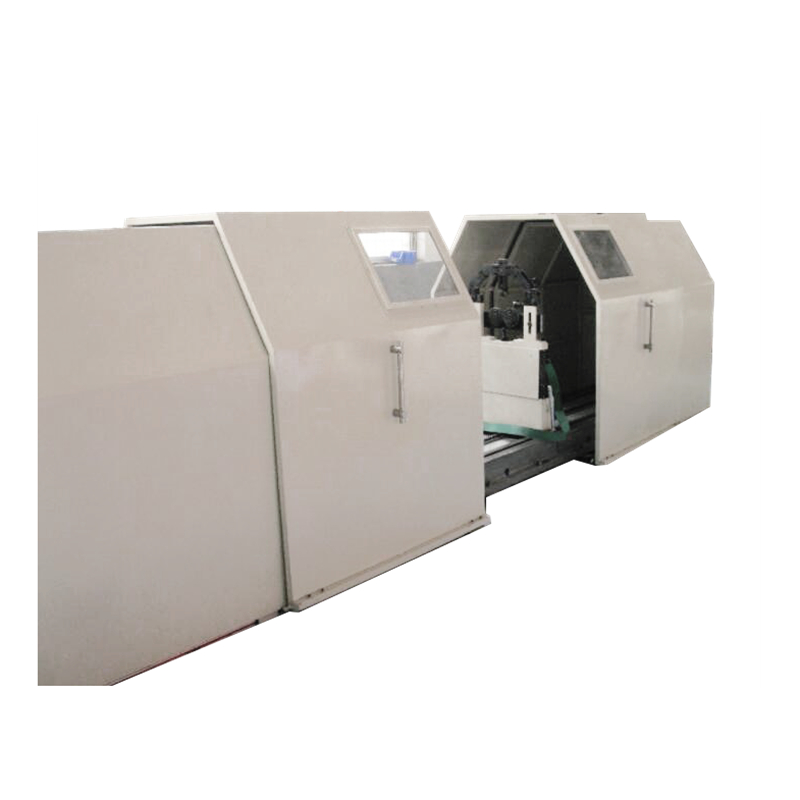

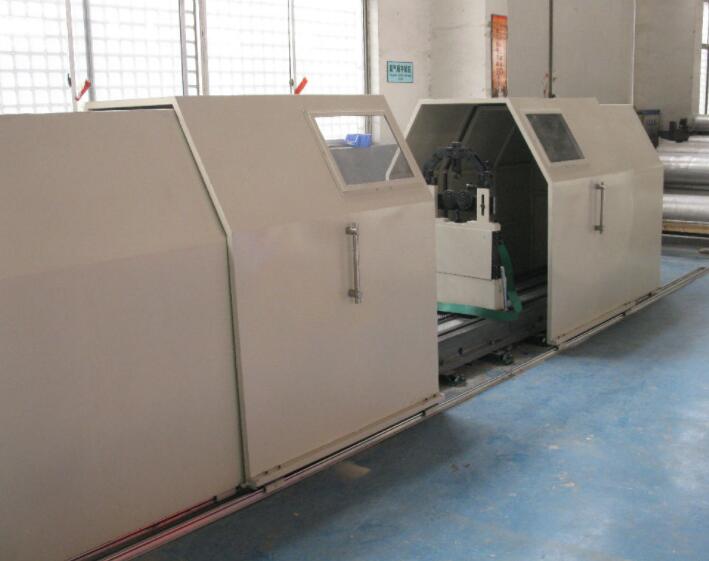

Shanghai Shenman 1600KG with protective cover hard supportdrive shaft balancing machineis an ideal equipment for balance check of automobile transmission shaft. It can do double-sided dynamic balance correction of various automobile transmission shafts by replacing the fixture of the installation workpiece. Using advanced balance measurement software, with industrial control computer and control cabinet.
| Technical parameters of hard support drive shaft balancing machine with protective cover | |
| Max. mass of workpiece kg | 1600 |
| Max. diameter of workpiece mm | 1600 (special treatment) |
| Workpiece support shaft diameter range mm | Φ10-90;90-180 |
| Minimum distance between two supporting centers mm | Min 100 |
| coupling to the right support seat mm | 2000 (bed L = 3000mm) |
| Balance speed | plasma (stainless steel plate perforation) r/min 200~1500 stepless frequency conversion speed regulation |
| Motor power | kw 15 |
| Minimum attainable residual unbalance emar g.mm/kg | ≤ 1 |
| Unbalance Reduction Rate URR% | ≥ 90 |
| Power Configuration | 3 phase/380V/50HZ |
| Diameter range of ring belt drive | 40-300 |
| Equipped with variable frequency speed regulating device | (15kw) |
| electric measuring box adopts liquid crystal color display | 17 inch LCD screen |
| Control Cabinet Specifications | with independent vertical control cabinet |
| control element | main control components |
| roller frame middle bearing | Japan (NSK) |
| Support Frame Specification | special custom fixed bearing seat |
| printing system | with A4 printer Epson (color printing) |
