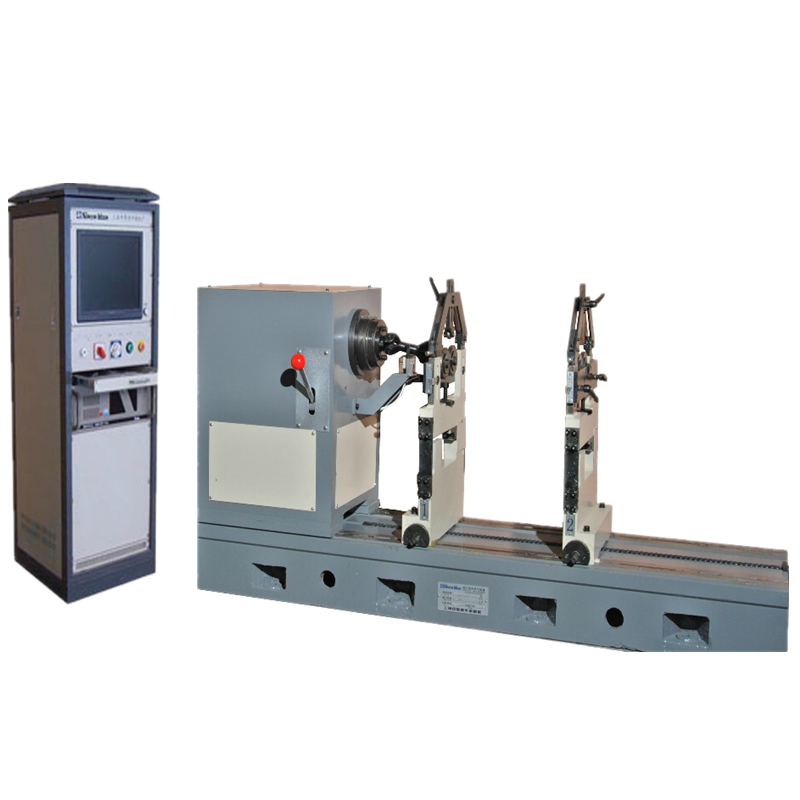

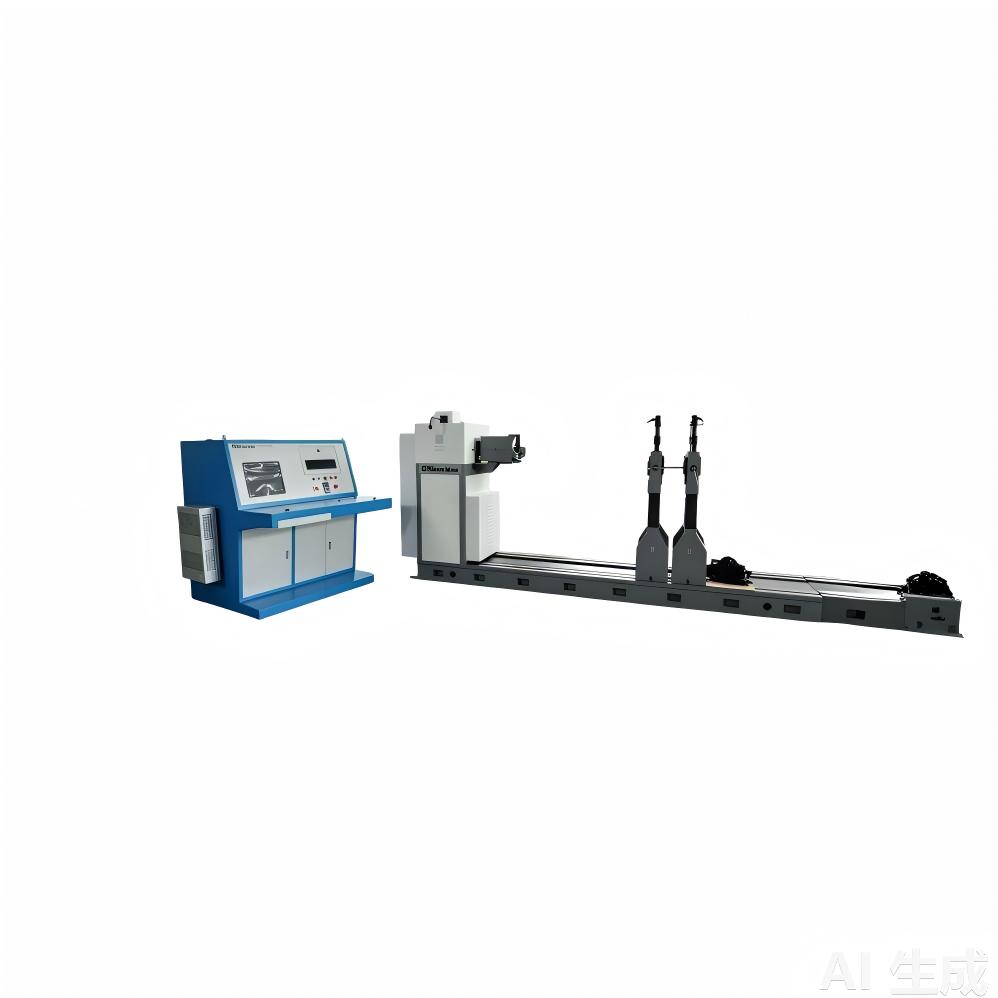

SB-5T(50kg) universal joint drive hard support balancing machine
Created on：2026-04-18 14:45
넶PV：0
Shanghai Shenman Universal JointDynamic balancing machineSuitable for 5kg-30T paper dryer, blower rotor, turbine rotor, large fan impeller and other rotating body workpiece balance check. The universal joint dynamic balancing machine adopts universal coupling transmission, which can obtain a variety of balanced speeds, and has high precision, convenient operation and high work efficiency.
| SB-5T(50kg) universal joint drive hard support balancing machine technical parameters | |
| Workpiece mass range (kg) | 50 |
| workpiece (mm) | 850 |
| supporting shaft diameter range (mm) | 8-140 |
| Minimum distance between two support centers (mm) | 100 |
| coupling to the right support seat (mm) | 1500 |
| Balance speed (r/min) | 480/720/960/1440 |
| Motor power (kw) | 0.85/1.1 |
| Minimum reachable residual unbalance emar(g · mm/kg) | 1 |
| unbalance reduction rate URR(%) | ≥ 90 |
| Power Configuration | three-phase/380V ; 50HZ |
| Cardan shaft (N?M) | 100 |
| Electric measuring box | LCD color display computer system |
| roller frame middle bearing | |
| with independent vertical control cabinet | |
| with industrial controller | |
